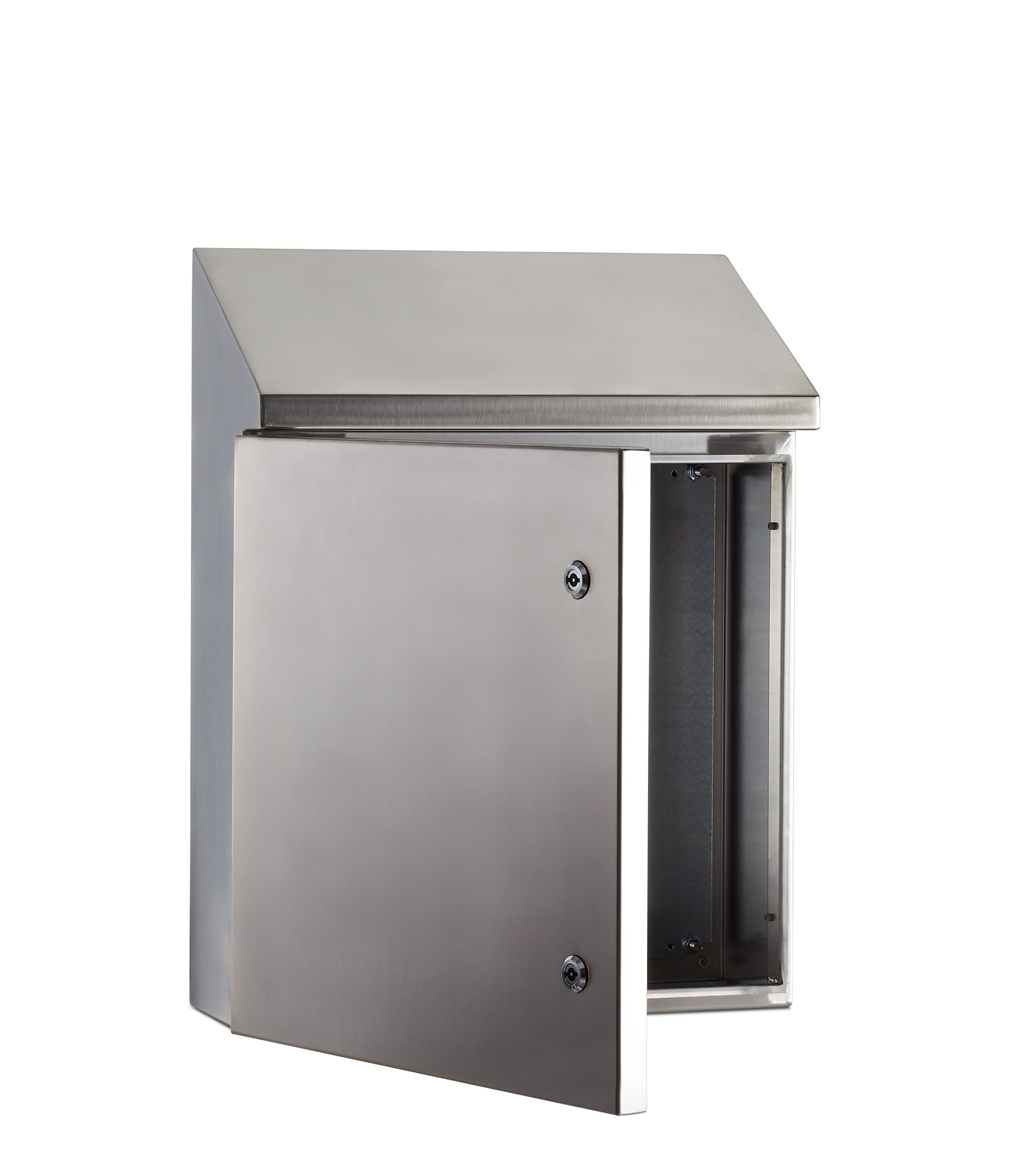

D93/GNA-A BOXES (INTERNAL PLATE)

D93/GN-A

Casing:

1,5 mm thick stainless-steel; welded monobloc structure; 30° tilt roof; without cable entry flange.

Internal plate:

2,0 mm thick galvanised steel sheet (Sendzimir), non-adjustable.

Solid door:

1,5 mm thick; polyurethane sealing gasket; chrome zamak locking system with 3 mm double-comb tool insert; other configurations are available. 120° standard opening with reversible left hinges.

Earthing:

M6 pins to be welded on structure and door.

Finish:

Fine scotch brite medium satin, 240 grit.

Material:

1,5 mm thick AISI 304 stainless-steel. In AISI 316 stainless-steel on request.

IP66 for internal use (for external use contact our technical department at ufficiotecnico@zanardo.com)

IK10 impact resistance degree according to IEC EN 62208

NEMA4

Technical data subject to change without notice
