HMA I-Lift 25-S 31 526

Variable height adjustable suspension arm with flange foot joint mount and HMA I-040 head joint mount

• Default colours:

  • Cover: RAL 7035 (Light grey)
  • Bearings: RAL 7016 (Anthracite grey)
  • Special colours on request

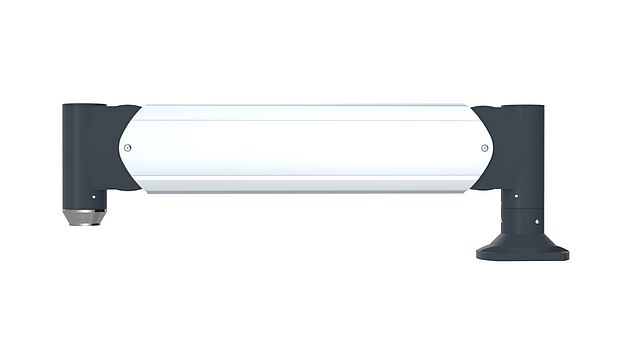

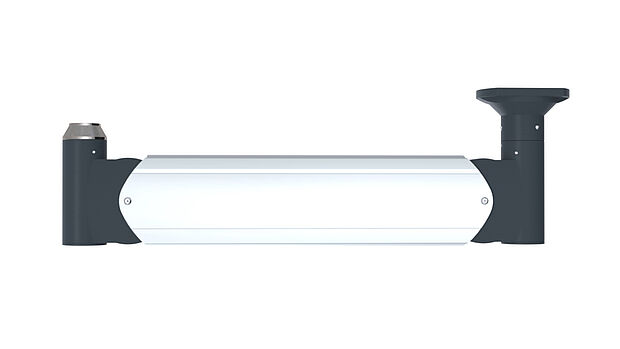

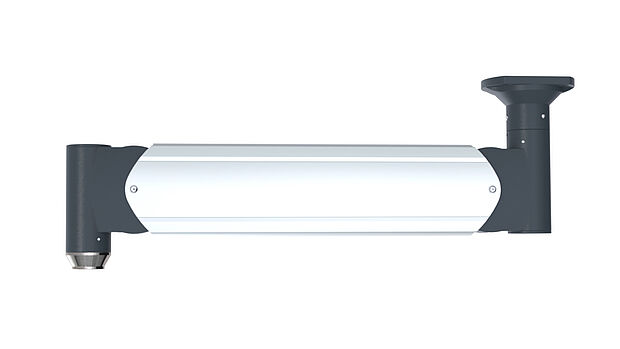

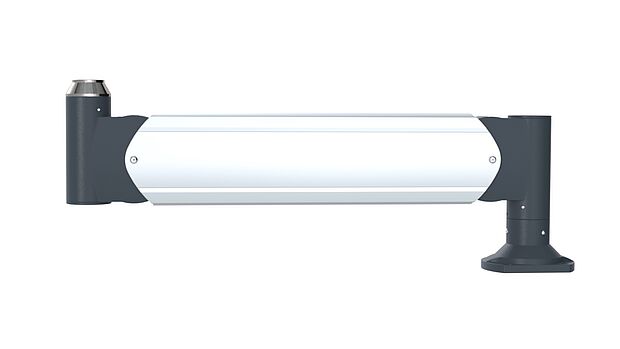

•  Base and head joint can be mounted to face upwards and downwards

• 4 system lengths available

• Vertical swivel angle +/- 40° with continuously variable stroke limiter to +/- 0°

•  Restraint-guided load suspension at head joint

• Stroke locking with operator release (option)

• Fine adjustment of the load capacity range (TLB) using adjusting screw

• Load range exclusive vertical tube and attachments

• Horizontal swing angle 300° with rotation limiter adjustable in 30° steps

• Low maintenance
