RX CABINET

RX

Structure:

1,5 mm thick steel sheet drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and plinth fixed to structure.

Side and back panels:

1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure.

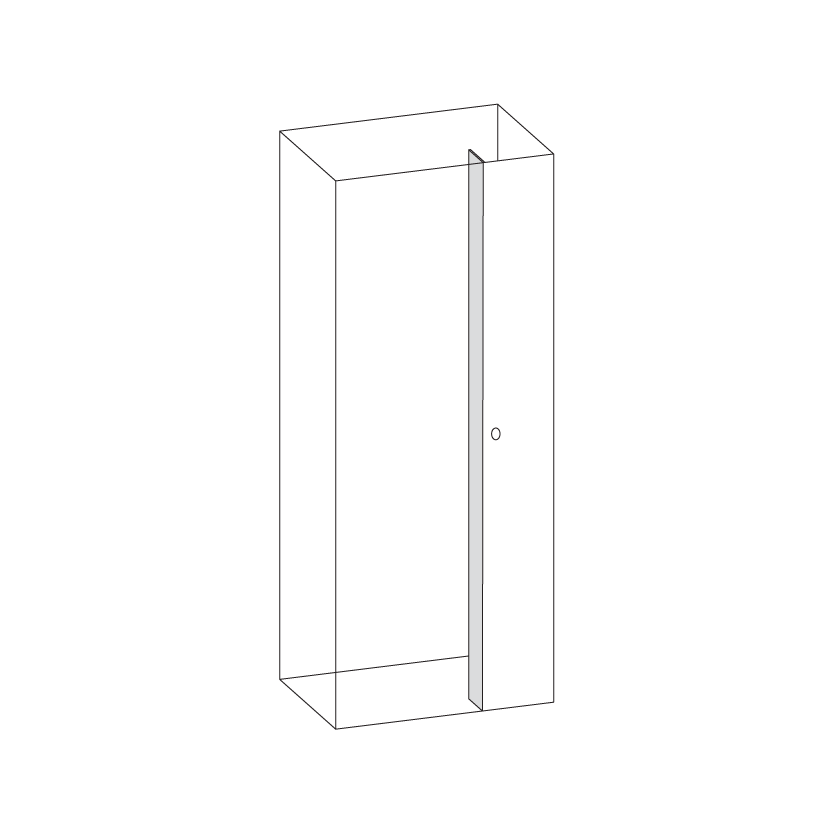

Partial solid door:

1,5 mm thick steel sheet; polyurethane sealing gasket; 100° standard opening with reversible right hinges. Standard locking system with double-comb tool insert. Other configurations are available.

Partial internal plate:

2,0 mm thick galvanised steel sheet (Sendzimir); to be fixed to vertical divisor.

Cable entry flange:

1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket.

Earthing:

M6 nuts and pins to be fixed on structure and doors.

Painting:

Thermosetting powders.

Material:

1,5/1,8 mm thick carbon C R steel sheet.

Standard colours:

RAL7035 textured - Plinth RAL7009 textured.

IP66 for internal use (for external use contact our technical department at ufficiotecnico@zanardo.com).

IK10 impact resistance degree according to IEC EN 62208.

NEMA 12.

Technical data subject to change without notice
