TCF MONOBLOCK CABINET

TCF

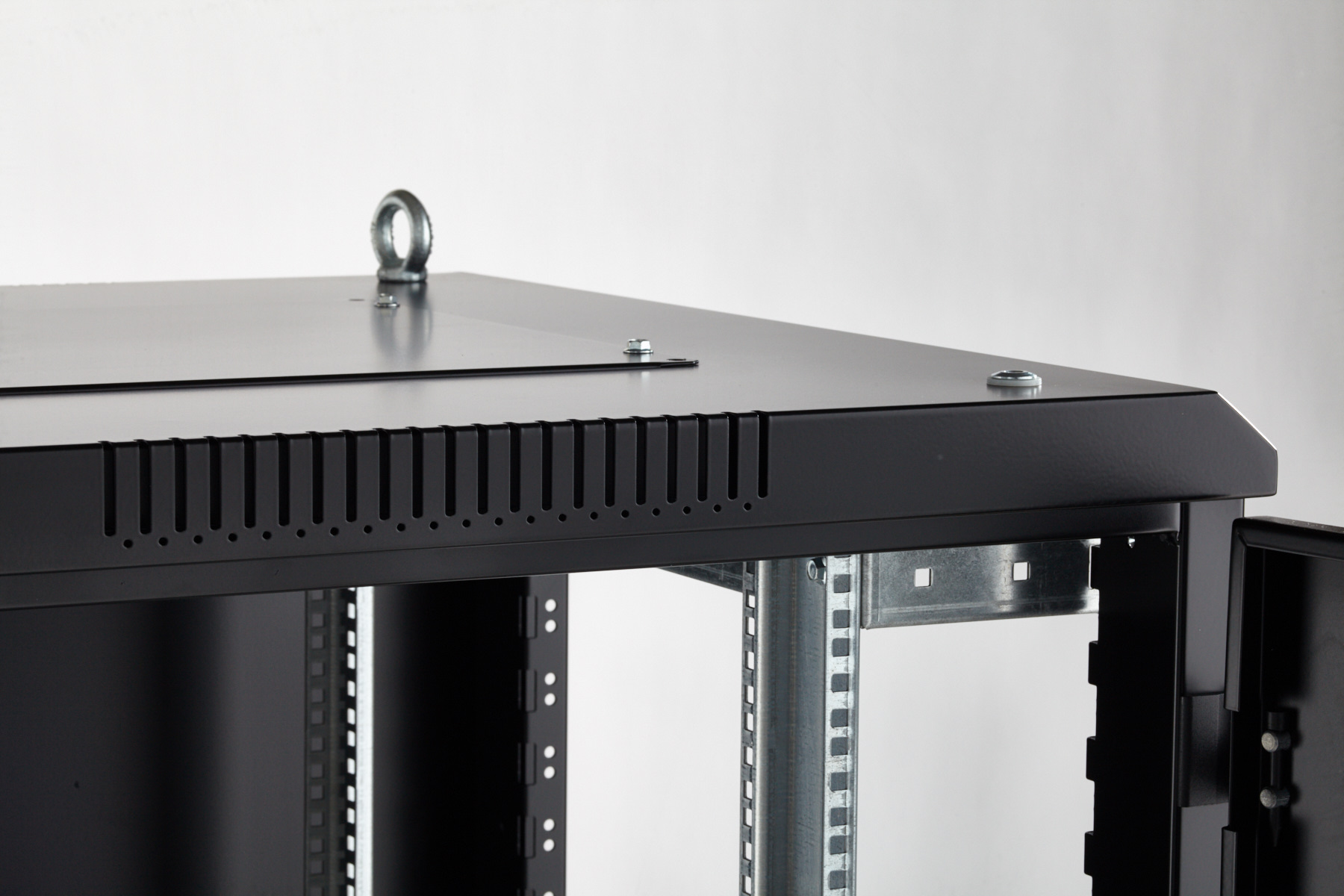

Casing:

1,5 mm thick steel sheet monobloc structure; welded roof and base

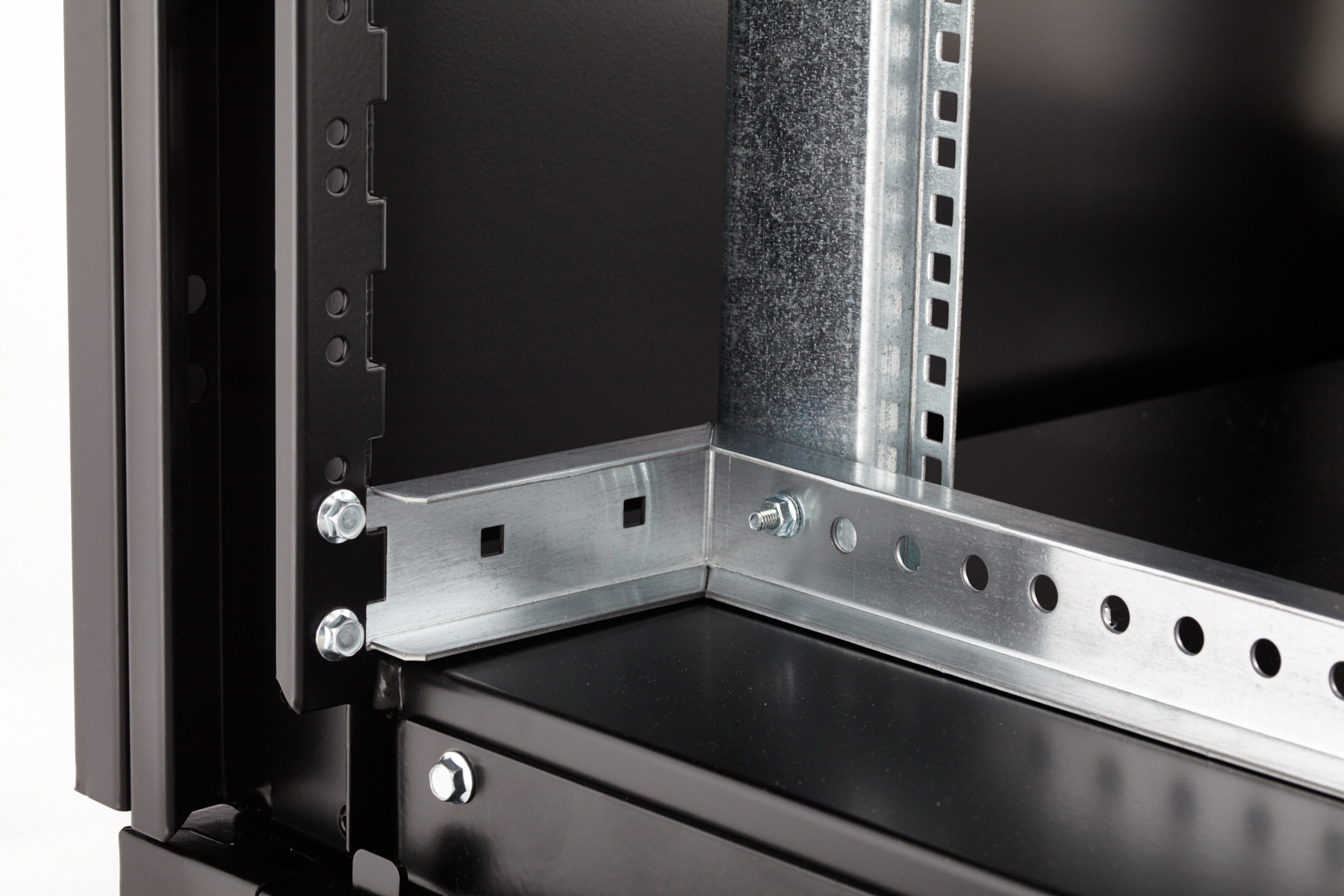

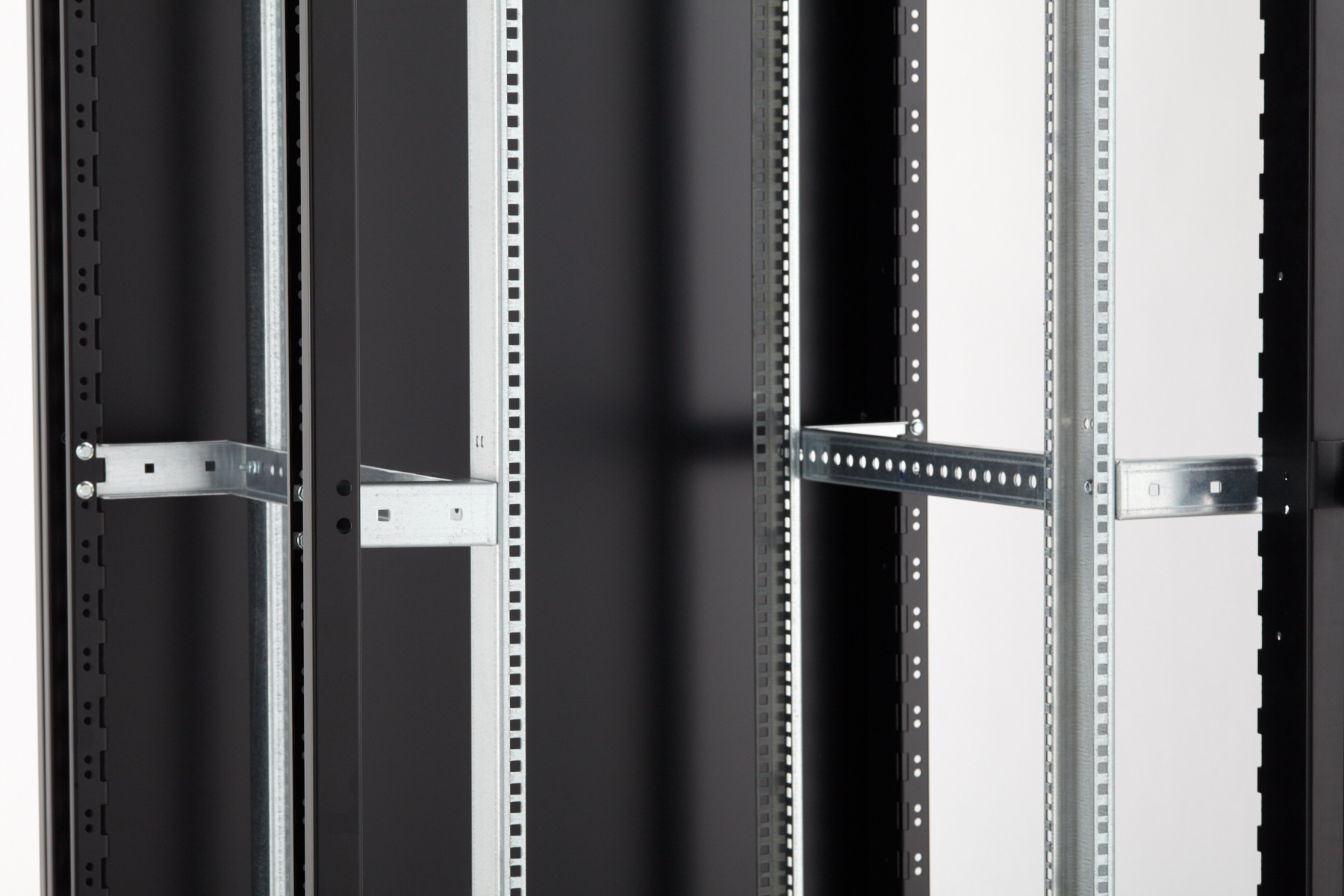

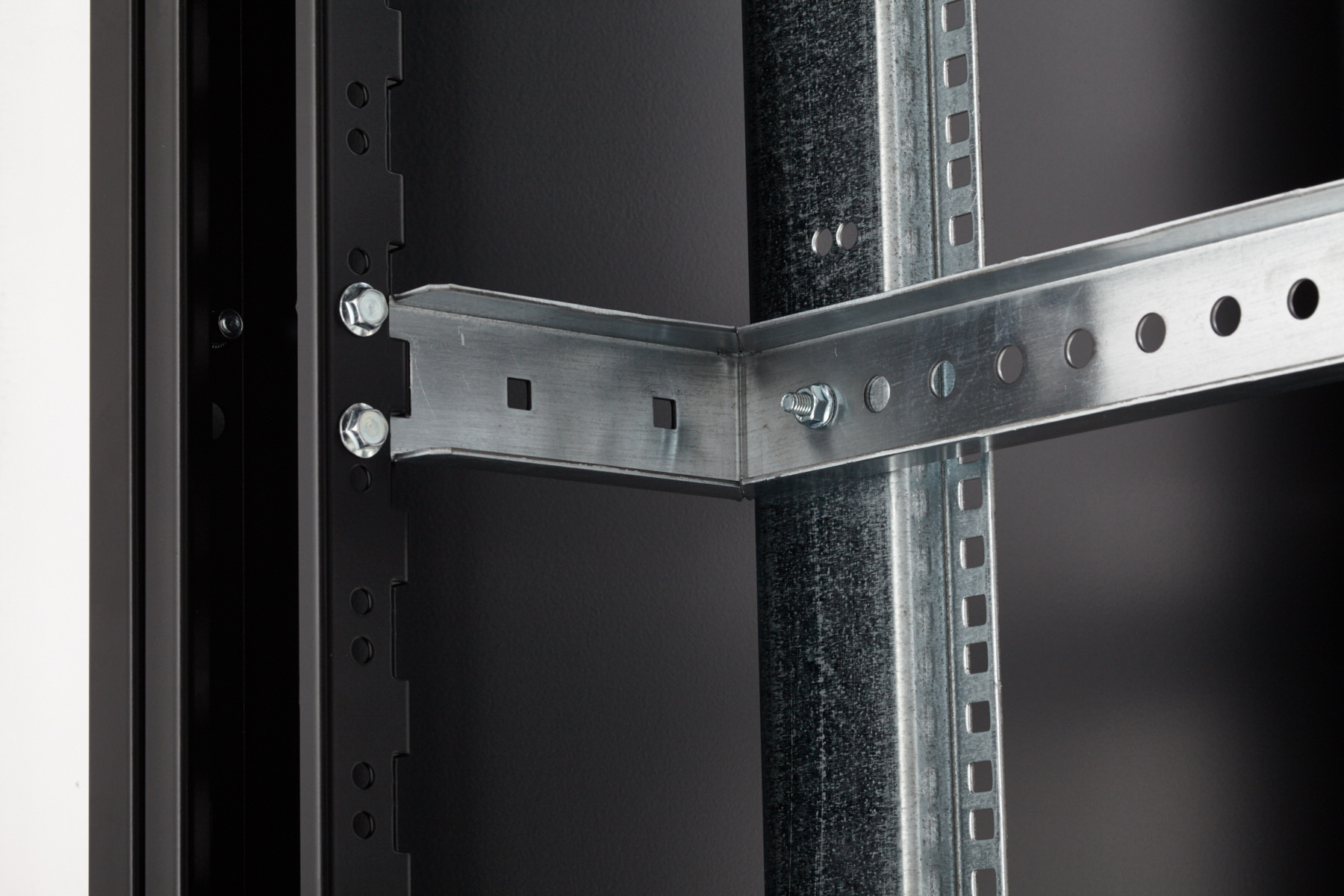

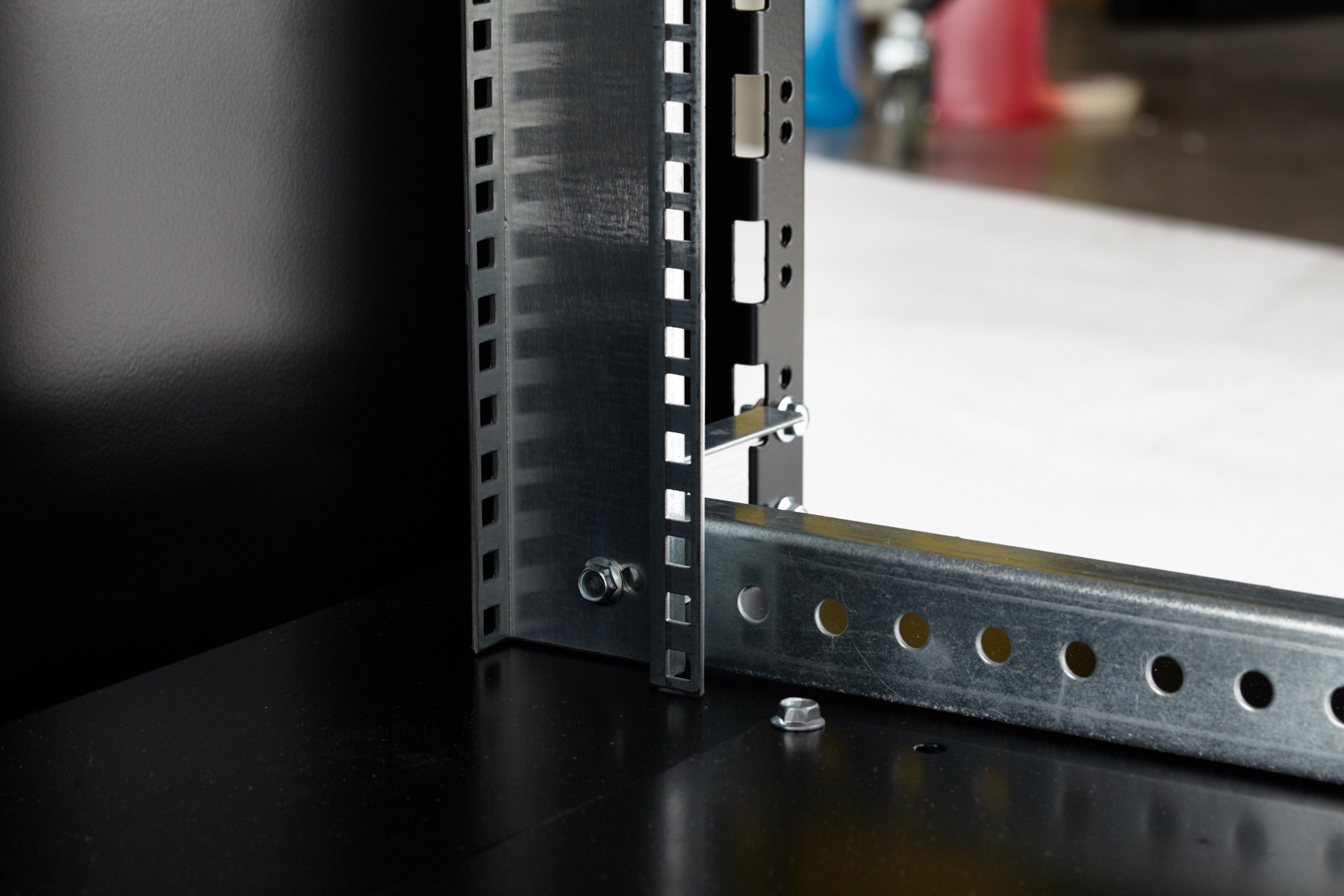

Internal supports:

Front and back supports drilled with RACK 19”pitch, in 2,0 mm thick galvanised steel sheet (Sendzimir), depth adjustable with25 mm pitch.

Front transparent door:

1,5 mm thick; crystal porthole; retractable handle with security key; other configurations are available. 180° standard opening with right hinges.

Cable entry flange:

On top and bottom sections; flat; fixed with screws.

Back and side panels:

1,5 mm thick steel sheet; removable; with aeration flaps; with quick-release locking system.

Painting:

Thermosetting powders.

Material:

1,5 mm thick carbon steel sheet.

Standard colours:

RAL9005 textured opaque

Technical data subject to change without notice
