D93/S (Transparent door)

D93S

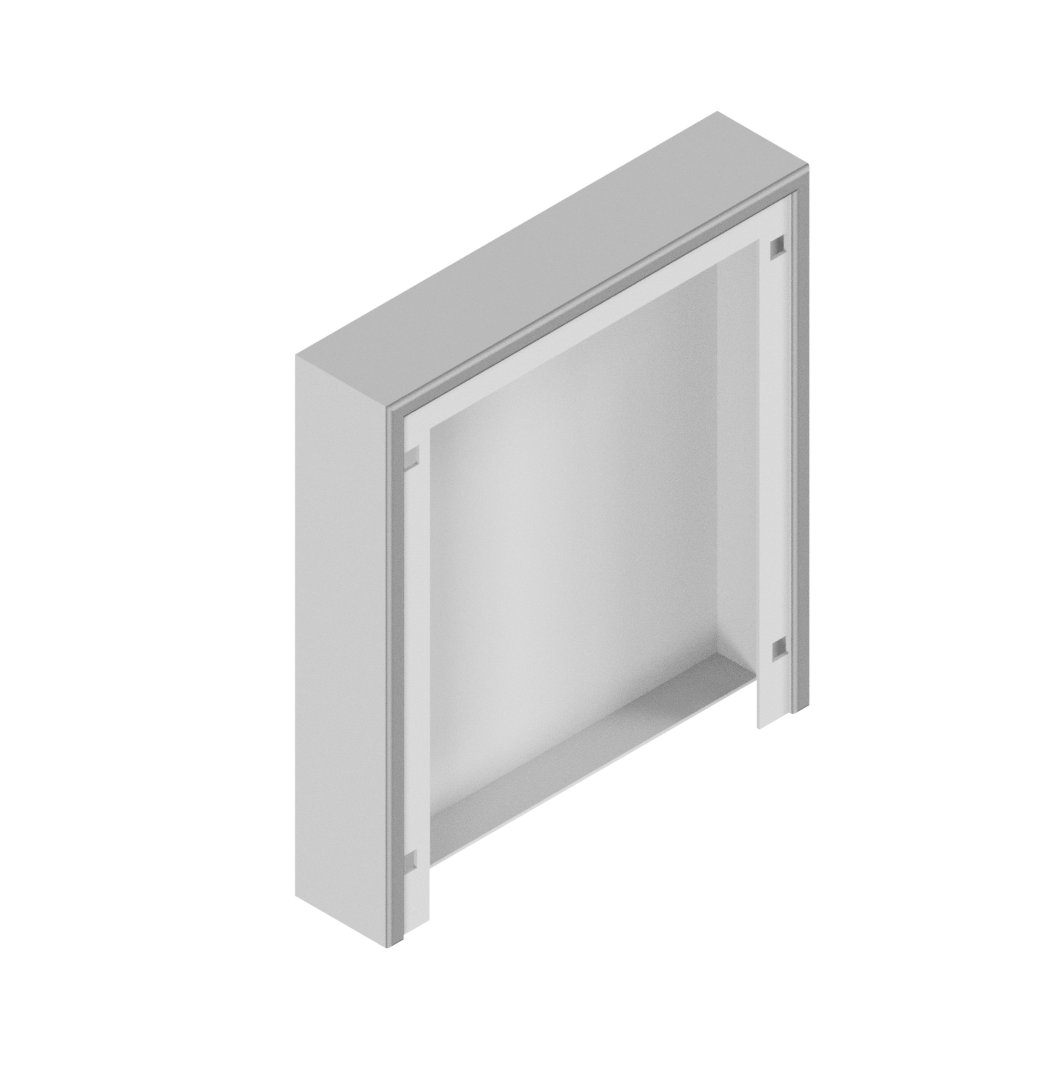

Casing:

1,5 mm thick carbon steel; welded monobloc structure.

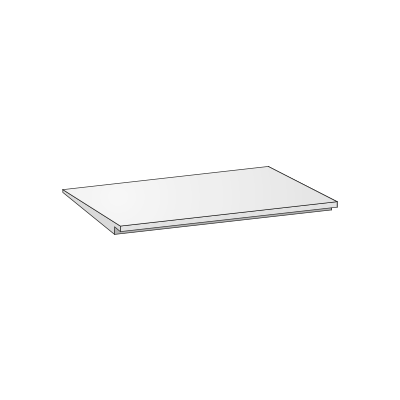

Internal Plate:

2 mm thick galvanised steel sheet (Sendzimir), not adjustable.

Cable Entry:

Bottom sealed flange.

Transparent door:

1,5 mm thickness; polyurethane sealing gasket; Pre-drilled internal supports for elements mounting (from H606); pvc locking systems with 3 mm double-comb tool insert, other configurations are available. 120° standard opening with reversible left hinges. Provided with glass transparent porthole and 1,5 mm thick sheet internal door.

Earthing:

M6 pins to be welded on structure and doors.

Painting:

Thermosetting powders

Material:

1,5 mm thick carbon steel sheet

Standard Colours:

RAL7035 textured

SIDE-BY-SIDE CONFIGURATIONS WITH ADJACENT HINGES REQUIRE A 10 mm SPACER

IP66 for internal use (for external use contact our technical department at ufficiotecnico@zanardo.com)

IK10 impact resistance degree for IEC EN 62208

NEMA4

Technical data subject to change without notice
